SUPPORT STAYS

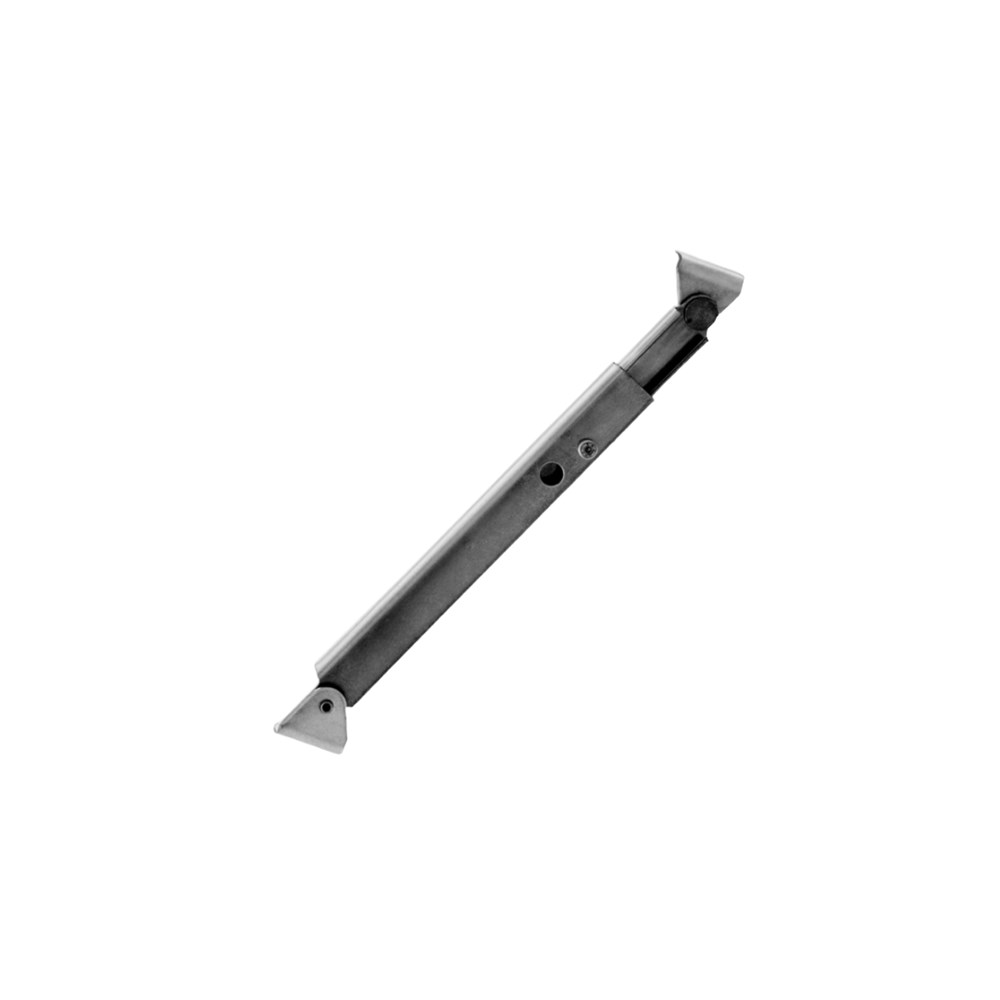

Telescopic Support Stay 152mm - 239mm 2 Brackets

Code:
7-25122
In Stock 30 units
$45.21 inc GST
Increase value Decrease value

Stock Availability:
  • NSW: 20 units
  • VIC: 0 units
  • QLD: 0 units
  • SA: 10 units
  • WA: 0 units
  • STM: 0 units
Weight (kg)
0.13
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • Contact Us

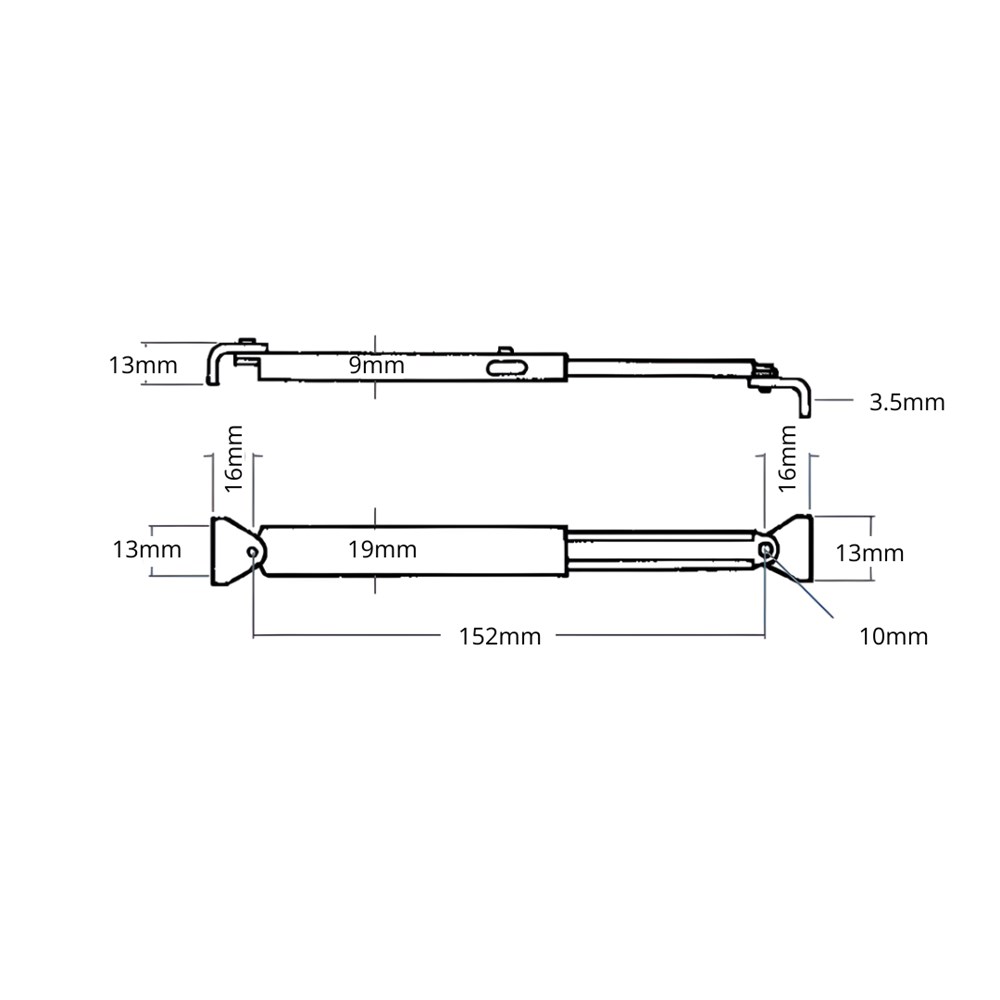

  • Stroke (Extended Length): 239mm (extended)
  • Closed Length: 152mm (length between centres when closed)
  • Max Profile Width: 19mm (outer)
  • Max Profile Depth: 9mm (outer)
  • Location (stay width): 16mm
  • Bracket Width: 24mm
  • Hole Centre Spacing (stay): 13mm
  • Bracket Fixing Hole Size: Ø3.5mm (standard)
  • Bracket Height: 13mm
  • Brackets Included: Supplied complete with two support brackets
  • Operation: Star-wheel style automatic stay that locks in the extended position and releases automatically with slight retraction
  • Application: Supporting doors, hatches, and access panels where controlled opening and holding is required (small doors, cabinets, inspection panels)

  • Mild steel with
  • zinc plating

  • Automatic locking stay mechanism: Holds doors and access panels securely in the open position, improving safety during loading, servicing, and inspections
  • Compact 19mm x 9mm profile: Ideal for confined vehicle body spaces where a low-profile support solution is required
  • Zinc-plated steel construction: Provides corrosion resistance and durability in on-road and outdoor transport environments
  • Supplied with mounting brackets: Simplifies installation onto vehicle panels, cabinets, and compartments, reducing fitment time
  • 239mm extended support length: Delivers controlled opening range for hatches and access doors, preventing over-travel and panel strain
