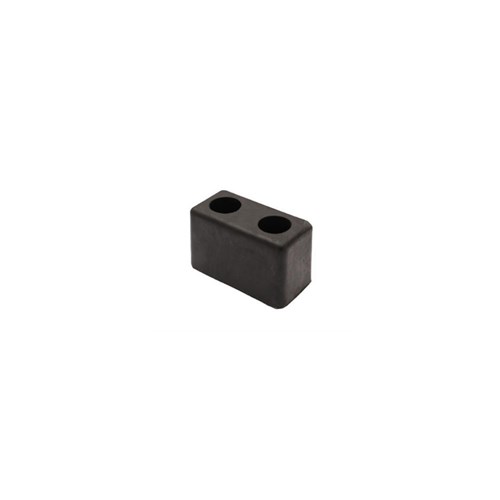

BUFFER RUBBER

Butt Hinge 90mm) Solid Section

Code:
BE-1507690B
In Stock 15 units
$27.81 inc GST
Increase value Decrease value

Stock Availability:
  • NSW: 0 units
  • VIC: 0 units
  • QLD: 0 units
  • SA: 0 units
  • WA: 15 units
  • NT: 0 units
  • STM: 0 units
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • Contact Us

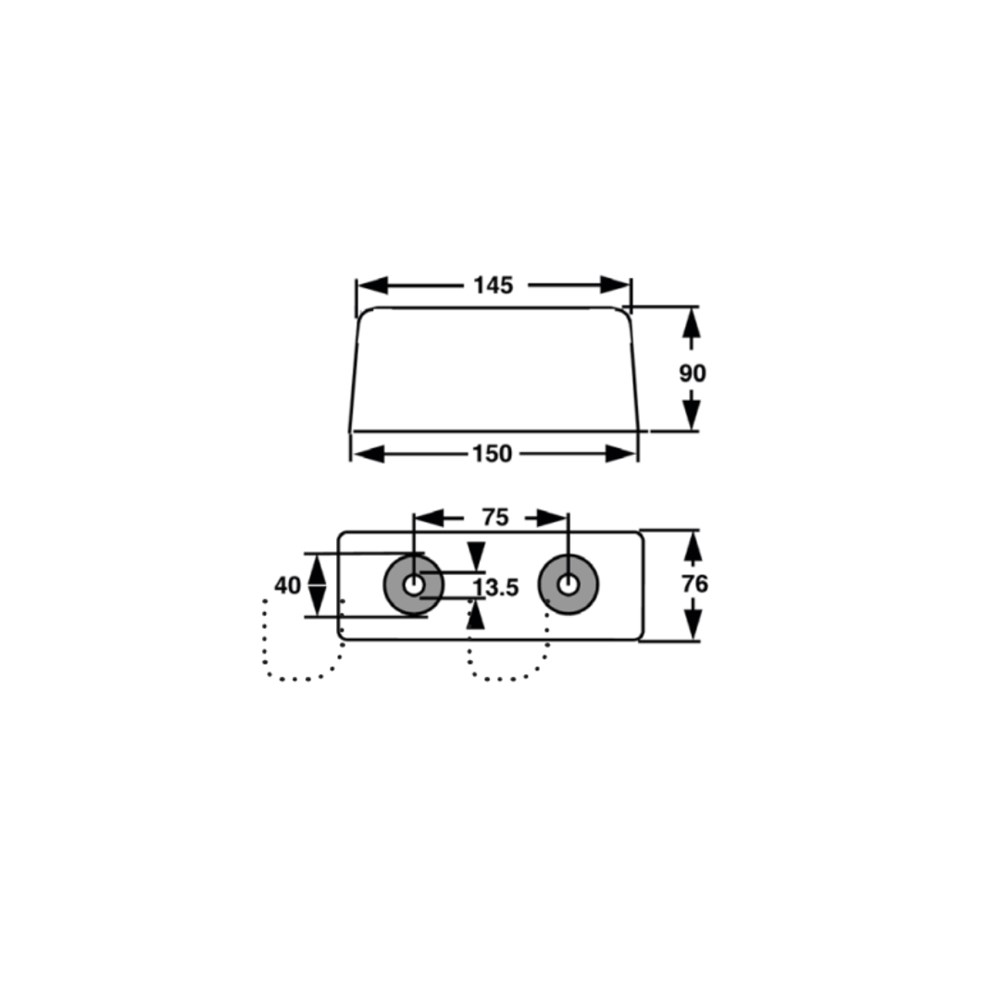

  • Mounting Type: Moulded-in through holes for mechanical fastening
  • Mounting Hole Diameter: 13.5 mm
  • Hole Centres: 75 mm apart (centre-to-centre)
  • Overall Width: 150 mm
  • Top Width (bevelled edge): 145 mm
  • Height: 90 mm
  • Depth: 76 mm
  • Fixing Hole Offset from Edge: 40 mm (vertical from base)
  • Installation: Bolt-on via recessed mounting holes
  • Application: Impact buffer for trucks, docks, doors, machinery

  • Material: EPDM Rubber

  • Moulded-in mounting holes: Simplifies installation with direct mechanical fixing, no need for additional brackets or modifications.
  • 75 DURO EPDM-blend rubber: Offers high hardness and impact resistance for demanding environments, extending product life under repeated contact.
  • Extreme durability: Resists cracking, deformation, and wear, ideal for industrial and commercial environments exposed to consistent impacts.
  • Non-cyclic buffing performance: Engineered for applications where impact is frequent but not repetitive in a single location, perfect for random-contact zones.
  • Versatile application range: Suitable for truck bumpers, fire door stops, loading docks, machinery guards, and other medium-duty impact points.
