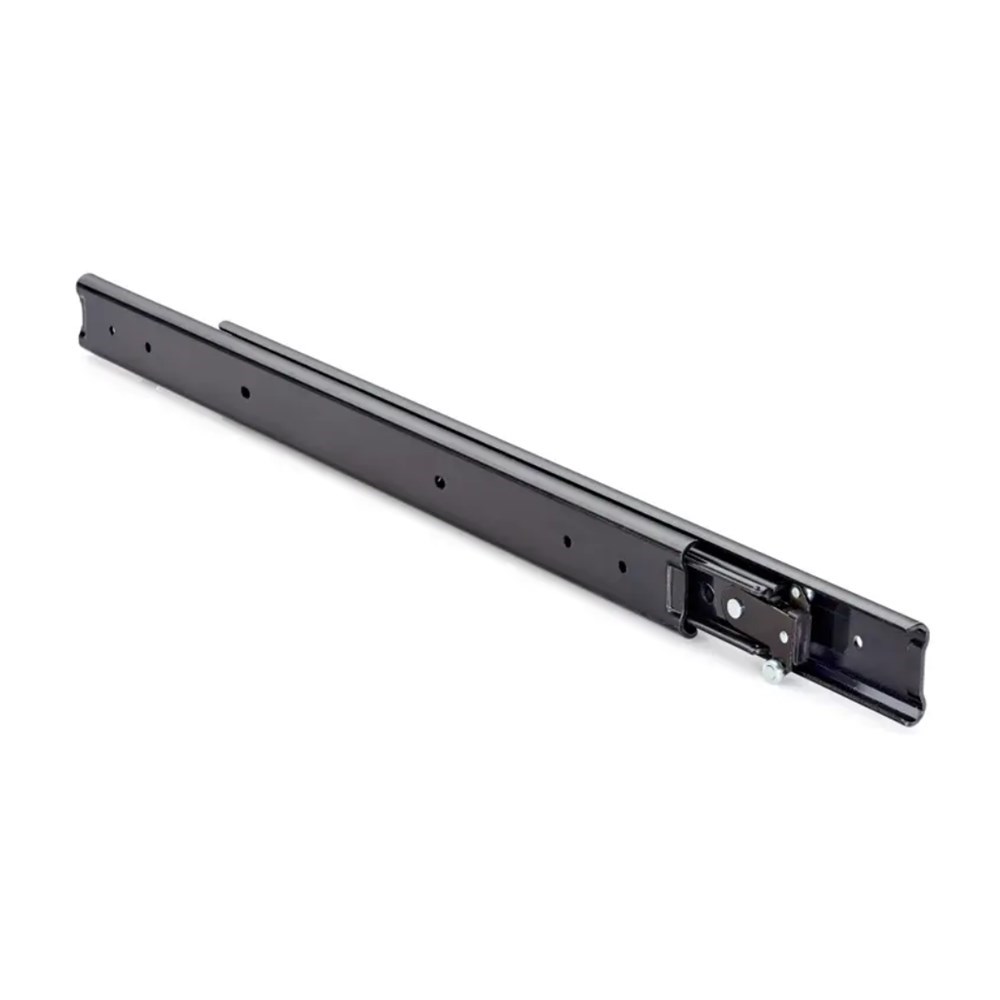

Name: Accuride 100% Extension 2 way Slide 60cm PR ZP 45kg Load
Price: 463.8 AUD

Qty	Each (inc GST)	Each

Load rating: up to 45 kg per pair
100 % extension
Slide height: 36.4 mm
Slide thickness: 21.6 mm
Side space for installation between the cabinet and the drawer: rail thickness 21.6 mm +0.2 mm to +0.5 mm
Maximum slide length: 700 mm
Two-way-travel slide with locking cams for intermediate member
Temperature -20 °C to 70 °C
Permitted mounting orientations: vertical mount
Not suitable for flat mounting

Mild Steel with Zinc Plating

Two-way travel with 100% extension: Enables full access from either side, ideal for dual-access compartments and through-drawers.
Load rating up to 45kg: Supports light-duty loads in commercial, industrial, or service applications.
21.6mm slide thickness: Balanced design offers durability without compromising cabinet space.
Vertical mount: Engineered for upright installations, ensuring reliable operation in electronic cabinetry.
Hold-in feature at centre: Keeps drawers securely closed during transit or vibration-prone use.
Shock and vibration tested: Engineered to withstand harsh conditions in transport, mining, and service vehicles.
RoHS compliant: Meets global environmental and safety standards for regulated industries.
