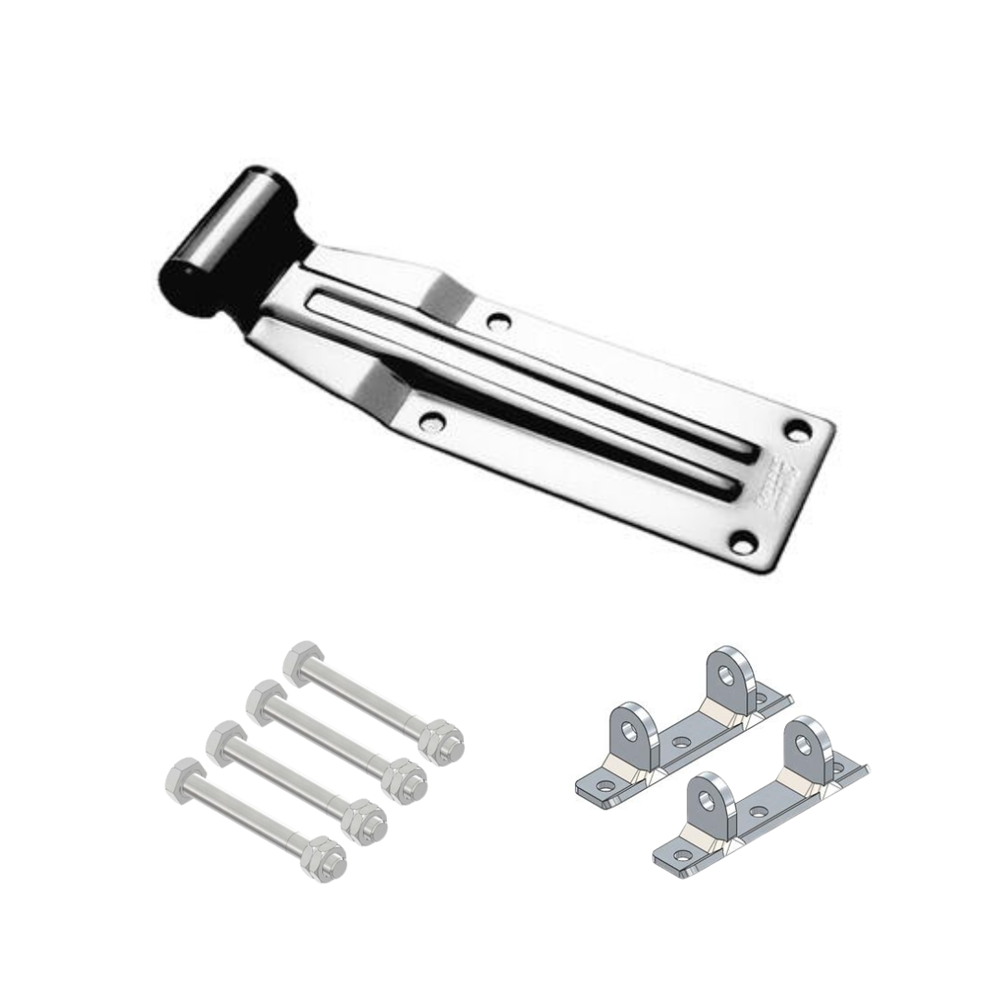

REAR DOOR HINGES

Rear Door Hinges. S/S. Bright Polished

Code:
ART546-0
In Stock 12 units
$114.95 inc GST
Increase value Decrease value

Stock Availability:
  • NSW: 0 units
  • VIC: 0 units
  • QLD: 0 units
  • SA: 2 units
  • WA: 10 units
  • STM: 0 units
Weight (kg)
0.56
Applications
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • Contact Us

  • Heavy-duty over-centre latch assembly
  • Suitable for trailers, drop sides, tailgates & industrial doors
  • Supplied as a complete installation kit

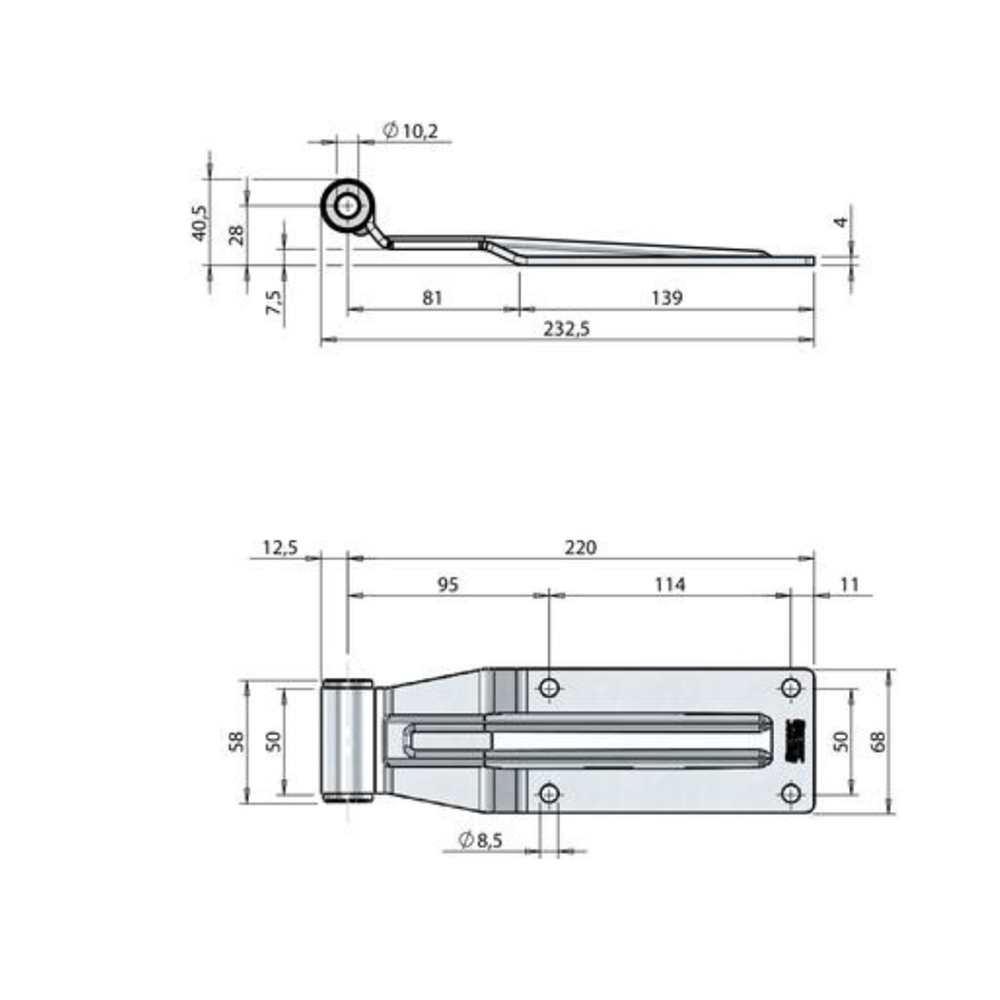

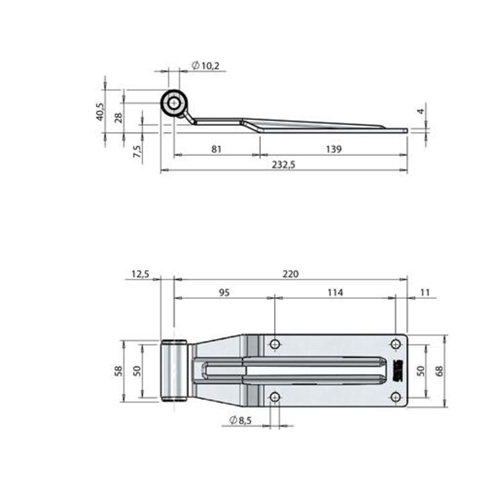

Rear Door Hinge:
  • Base plate size: 220mm x 68mm
  • Plate thickness: 4mm
  • Mounting holes: 4 x Ø8.5mm
  • Pivot barrel diameter: Ø10.2mm

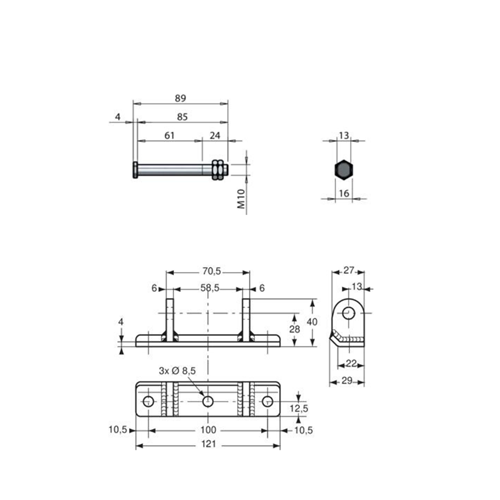

Brackets (Pair)

  • Base length: 121mm
  • Height: 40mm
  • Mounting holes: 3 x Ø8.5mm per bracket
Bolts and Nuts:
  • Bolt size: M10
  • Bolt length: 89mm
  • Supplied with matching hex nuts

  • Stainless steel

  • Stainless steel latch, brackets & hardware: Provides superior corrosion resistance for marine, transport, and outdoor industrial environments.
  • Heavy-duty over-centre compression design: Delivers high clamping force for secure, vibration-resistant closure on trailers, tailgates, and equipment doors.
  • Complete kit with stainless M10 bolts & nuts: Ensures strength, compatibility, and simplified installation without sourcing additional hardware.
  • Reinforced base plates with Ø8.5mm mounting holes: Supports secure, load-bearing fitment for high-cycle and heavy-duty applications.
  • Precision pivot barrel and welded bracket construction: Maintains alignment and long-term durability under constant movement and harsh operating conditions.
