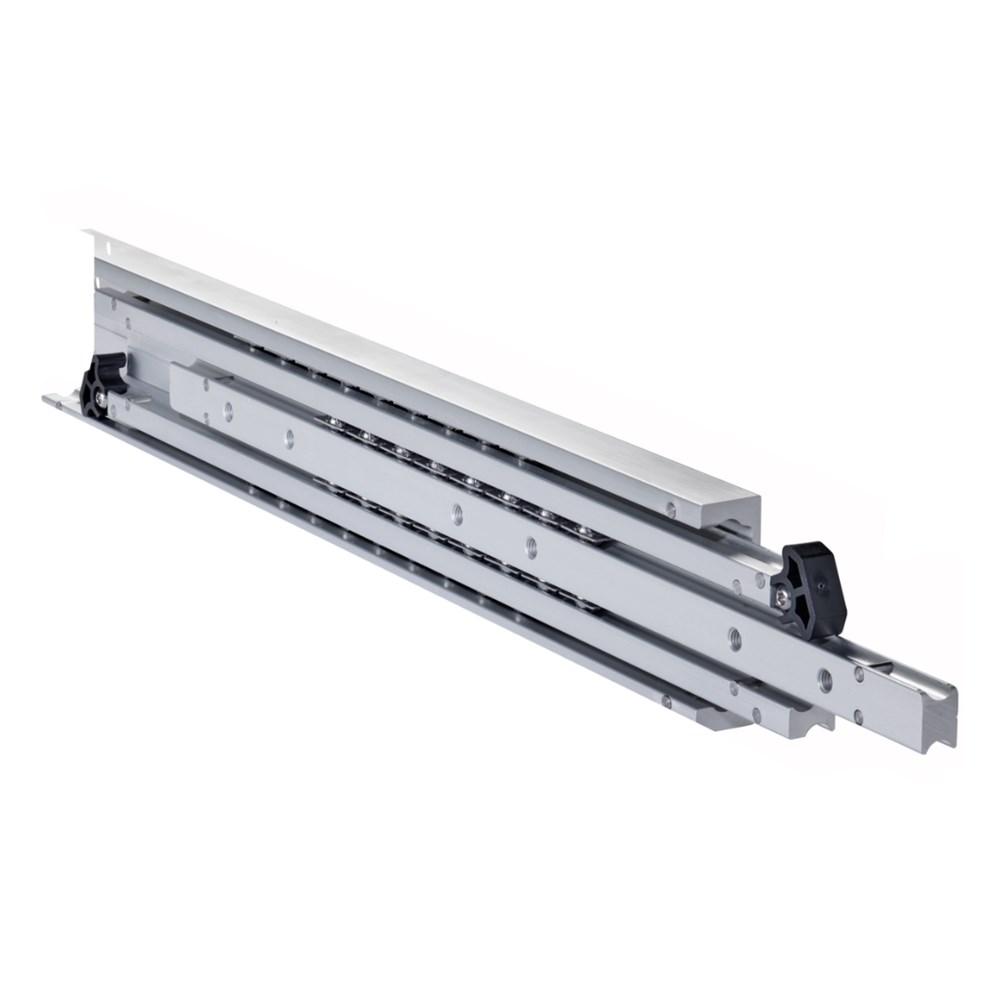

Name: Accuride 100% Extension 2 way 50cm PR AL 270kg Load
Price: 1328.6 AUD

Qty	Each (inc GST)	Each

End stops have been tested to 10 cycles with
400kg at 0.8m/s. We recommend that additional
external stopping arrangements are used
Load rating: up to 270 kg per pair
100 % extension
Slide height: 80 mm
Slide thickness: 26.5 mm
Side space for installation between the cabinet and the drawer: rail thickness 26.5 mm +0.2 mm to +0.5 mm
Maximum slide length: 1,000 mm
Two-way-travel slide with locking cams for intermediate member
Temperature -20 °C to 70 °C
Permitted mounting orientations: vertical mount
Not suitable for flat mounting
Corrosion resistant

Aluminum

Load rating up to 270kg per pair: Supports high-capacity storage applications in transport, industrial, and service environments.
100% extension: Provides full access to drawer contents for efficient loading, unloading, and workspace usability.
Vertical mount only: Engineered for upright installations, ensuring reliable operation in vehicle and equipment cabinetry.
Two-way travel with locking cams: Enhances accessibility and stability with secure intermediate slide positioning.
Shock and vibration tested: Engineered to withstand harsh conditions in transport, mining, and service vehicles.
RoHS compliant: Meets global environmental and safety standards for regulated industries.

Access to CAD files is exclusive to registered users; please log in or create an account to download.
