COMPRESSION LOCKS

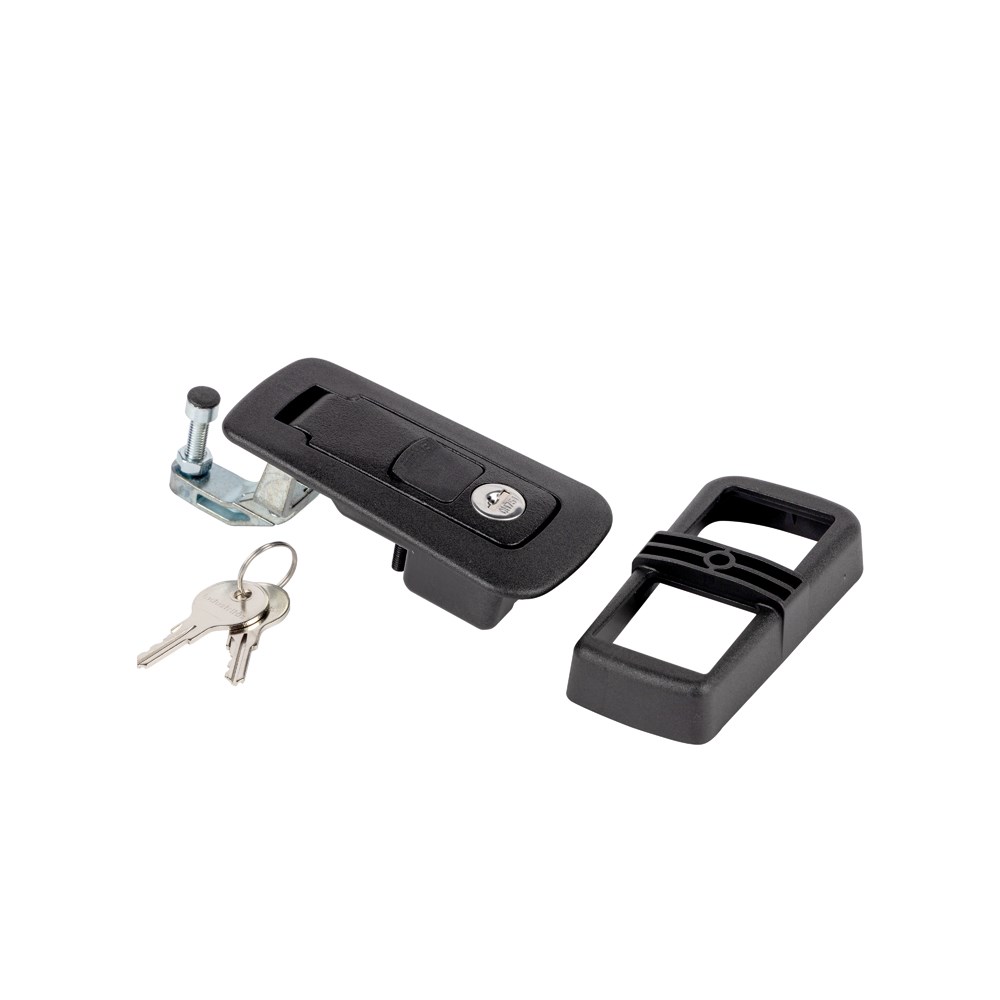

Compression Latch - Black - IP66 Rated

Code:
2815L
In Stock 677 units
$27.86 inc GST
Increase value Decrease value


Stock Availability:
  • NSW: 0 units
  • VIC: 53 units
  • QLD: 44 units
  • SA: 40 units
  • WA: 208 units
  • NT: 12 units
  • STM: 320 units
Weight (kg)
0.04
Applications
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • CAD File
  • Contact Us

  • Outer Dimensions: 137.5mm H x 58mm W x 28.5mm D
  • Cut-Out Dimensions: 35mm W x 90mm H
  • Protection Rating: IP66 (sealed against water and dust)
  • Grip Range: Adjustable from 11mm to 61mm
  • Door Thickness Compatibility: Up to 7mm
  • Key Code: CH751
  • Standards/Certifications: IP66, DIN EN 61373

  • Latching arm inside sealed area: Zinc die cast, zinc plated
  • Gaskets: EPDM
  • Handle: Zinc die cast, black texture powder coated
  • Housing: Glass fibre reinforced Polyamide (PA6GF30) or zinc die cast, E-coat and black texture powder coated
  • Mounting bracket: Glass fibre reinforced Polyamide (PA6GF30)
  • Nut: Steel, zinc plated
  • Pin: Stainless steel 303
  • Screw: Steel, zinc plated
  • O-ring: NBR
  • Push button: Glass fibre reinforced polyamide (PA6GF30)

  • High Protection Rating: IP66-rated for superior water and dust resistance.
  • Adjustable Grip Range: Accommodates 11–61mm grip range for a secure fit.
  • Door Compatibility: Suitable for door thicknesses up to 7mm.
  • Flush-Mounted Design: Provides a sleek, low-profile installation.
  • Keyed Alike or Differ Options: Available with CH751 key code or keyed to differ cylinders.
  • Secure & Sealed: Equipped with a PUR-gasket and O-rings for enhanced sealing.
  • Quick Installation: Includes a mounting bracket for easy assembly.

Access to CAD files is exclusive to registered users; please log in or create an account to download.
